EA-10000 시리즈
EA-PSB / PSI / ELR / PS
EA-10000 시리즈는 다양한 선택지와 확장된 성능 범위, 강력하고 효율적인 특징을 가진 프로그래밍 가능한 DC 전원 공급 장치 및 전자 부하 장치를 제공합니다. EA-10000 시리즈는 출력전력이 600W에서 30kW, 6A에서 1000A까지의 출력 전류, 출력전압이 10V에서 2000V까지 제공 가능합니다. 또한, 96% 이상의 에너지 회수 효율성을 가지며 최대 1.92MW까지의 출력을 생성할 수 있는 EA-Power 랙에 최대 64대의 장치를 병렬로 연결할 수 있습니다.
또한 차세대 테스트 응용 프로그램을 위한 Autoranging 및 통합 함수 발생기를 사용한 효율적인 응용 프로그램 테스트를 지원하며 PC 및 PLC와의 다양한 인터페이스를 통해 편리한 조작이 가능합니다. EA-10000 시리즈는 프로그래밍 가능한 전원 솔루션에서 가장 포괄적인 제품 다양성을 제공합니다.
Yes to EA- 10000 series
Largest product variety. Extended performance range. Powerful and efficient.
- Yes to more choice with over 180 DC power supplies and electronic loads: programmable, bidirectional, regenerative
- Yes to extended power ranges:
From 600 W up to 30 kW programmable output power, from 6 A up to 1000 A output current, and from 10 V up to 2000 V output voltage - Yes to energy recovery greater than 96 % efficiency
- Yes to safe parallel connection of up to 64 devices in the EA-Power Racks producing up to 1.92 MW
- Yes to efficient applications test with true autoranging and integrated function generator
- Yes to easy handling with uniform devices and many interfaces to PCs and PLCs
Yes to more choice
The most comprehensive programmable power solutions
Largest product variety
The EA-10000 series includes more than 180 devices: programmable DC power supplies EA-PSI, bidirectional DC power supplies EA-PSB, and regenerative electronic DC loads EA-ELR.
All series come in power form factors of 2U, 3U and 4U
Choose between 3 different form factors, suitable for various applications and power requirements.

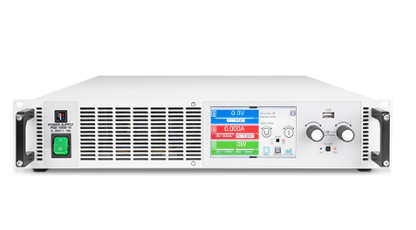

2U

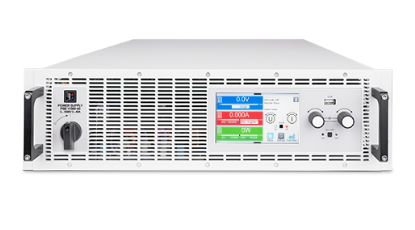

3U

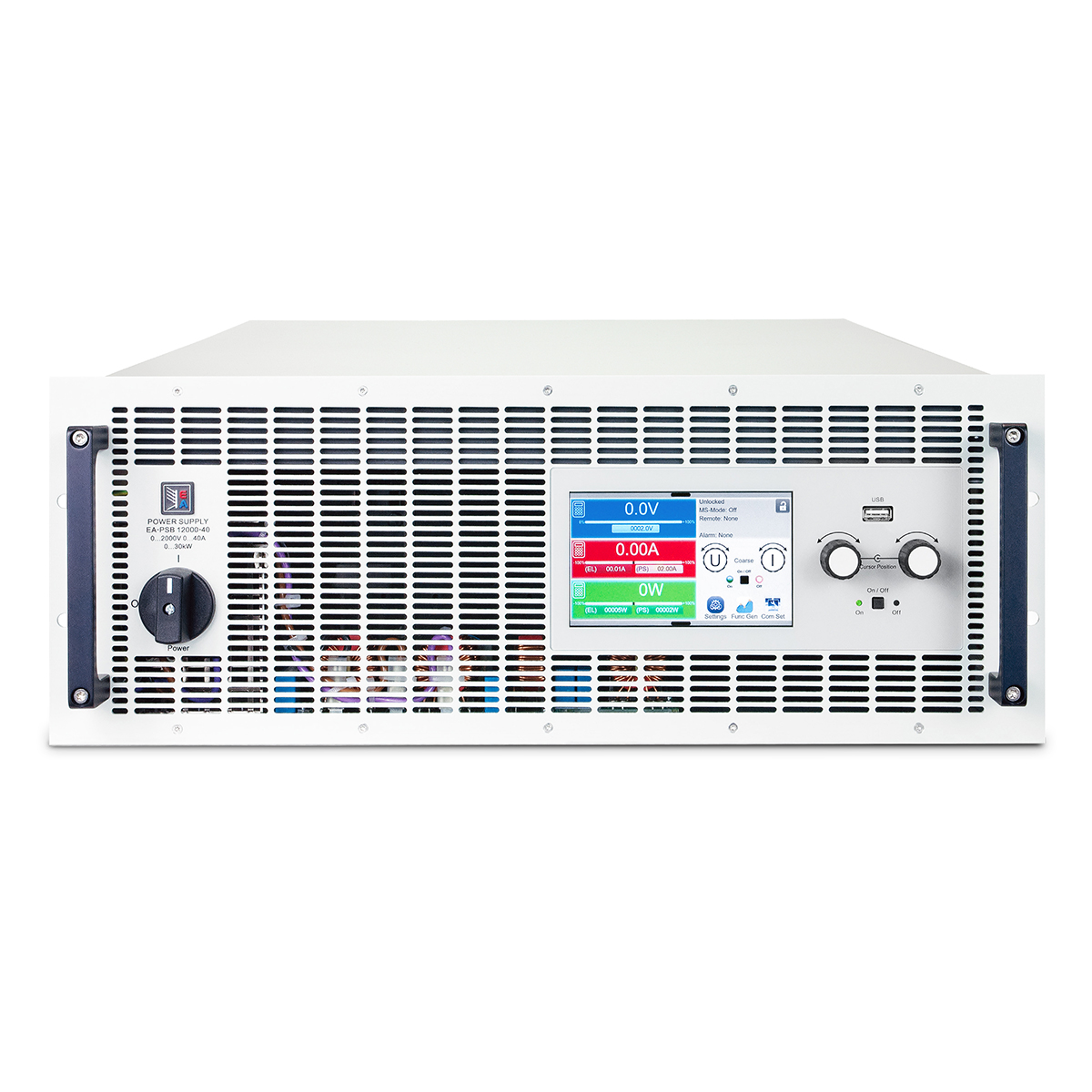

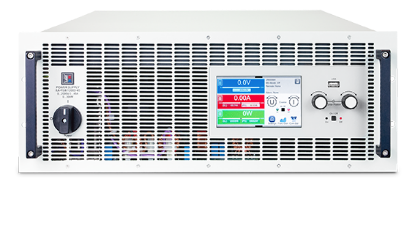

4U
| Power Supply | EA-PS 10000 Models in 4U, 3U, and 2U form factors |
|---|---|
| Power Supply Intelligent | EA-PSI 10000 Models in 4U, 3U, and 2U form factors |
| Power Supply Bidirectional | EA-PSB 10000 Models in 4U, 3U, and 2U form factors |
| Electronic Load Regenerative | EA-ELR 10000 Models in 4U, 3U, and 2U form factors |
Yes to extended power ranges
More power, voltage, current
The EA-10000 series offers an increased power range from 0 to 600 W up to 0 to 30 kW, output voltage from 0 to 10 V up to 0 to 2000 V and output current up to 1000 A.
| Series | Power | Voltage | Current |
|---|---|---|---|
| EA-PS 10000 4U | 0 – 30000 W | 0 – 60 V up to 0 – 2000 V | 0 – 40 A up to 0 – 1000 A |
| EA-PSI 10000 4U | 0 – 30000 W | 0 – 60 V up to 0 – 2000 V | 0 – 40 A up to 0 – 1000 A |
| EA-PSB 10000 4U | 0 – 30000 W | 0 – 10 V up to 0 – 2000 V | 0 – 40 A up to 0 – 1000 A |
| EA-ELR 10000 4U | 0 – 30000 W | 0 – 80 V up to 0 – 2000 V | 0 – 40 A up to 0 – 1000 A |
| Series | Power | Voltage | Current |
|---|---|---|---|
| EA-PS 10000 3U | 0 – 5 kW / 0 – 10 kW / 0 – 15 kW | 0 – 60 V up to 0 – 2000 V | 0 – 20 A up to 0 – 510 A |
| EA-PSI 10000 3U | 0 – 5 kW / 0 – 10 kW / 0 – 15 kW | 0 – 60 V up to 0 – 2000 V | 0 – 20 A up to 0 – 510 A |
| EA-PSB 10000 3U | 0 – 5 kW / 0 – 10 kW / 0 – 15 kW | 0 – 10 V up to 0 – 2000 V | 0 – 20 A up to 0 – 510 A |
| EA-ELR 10000 3U | 0 – 5 kW / 0 – 10 kW / 0 – 15 kW | 0 – 80 V up to 0 – 2000 V | 0 – 20 A up to 0 – 510 A |
| Series | Power | Voltage | Current |
|---|---|---|---|
| EA-PS 10000 2U | 0 – 1500 W / 0 – 3000 W | 0 – 60 V up to 0 – 1500 V | 0 – 6 A up to 0 – 120 A |
| EA-PSI 10000 2U | 0 – 1500 W / 0 – 3000 W | 0 – 60 V up to 0 – 1500 V | 0 – 6 A up to 0 – 120 A |
| EA-PSB 10000 2U | 0 – 1500 W / 0 – 3000 W | 0 – 10 V up to 0 – 1500 V | 0 – 6 A up to 0 – 120 A |
| EA-ELR 10000 2U | 0 – 1500 W / 0 – 3000 W | 0 – 80 V up to 0 – 1500 V | 0 – 6 A up to 0 – 120 A |
Yes to energy recovery
With efficiency greater than 96 %
Active power factor correction
All EA-10000 series models feature active power factor correction, typically 0.99, to minimize the power drawn from the power grid.
Energy recovery greater than 96 %

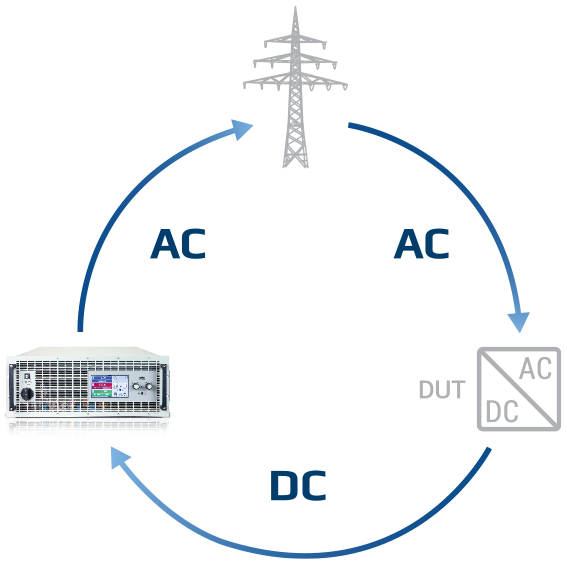

In addition, the EA-PSB bidirectional power supplies and EA-ELR electronic loads offer regenerative circuitry that feeds energy back into the grid with efficiencies greater than 96%. These regenerative circuits save operating costs and the cost of cooling that would be required to dissipate the heat in a conventional electronic load.
Reduce costs and consumption
EA-PSB and EA-ELR with active power factor correction and regenerative circuits
Yes to efficient applications
With autoranging and integrated function generator
True autoranging
All 10000 series devices offer true autoranging capabilities. Autoranging allows the device to deliver a higher voltage at lower currents and a higher current at lower voltages than a power supply or load with a conventional square wave output/input characteristic.
Power supplies and loads with autoranging provide users with a wider range of voltages and currents without having to oversize the devices. Benefits: For use in a variety of test applications, a single device provides a wider range of test applications and versatility.
- Wider range of test applications with just one instrument
- Provides wider voltage and current ranges per unit
Integrated function generator with arbitrary function The EA-PSI, EA-PSB and EA-ELR power supplies have an integrated function generator with arbitrary function. This makes it possible to generate complex signals depending on a DC bias voltage, as well as to simulate characteristics, for example of solar cells, batteries and fuel cells. Special functions enable maximum power point tracking (MPPT). EN 50530 is used for testing solar panel inverters as well as LV123, LV124 and LV148 standards-based test sequences for testing automotive components and systems. Built-in features simplify programming of 10000 instruments for simulations and creation of output sequences or input sequences to meet key test standards.
- Generation of complex AC and DC signals
- With EA-PSI, EA-PSB and EA-ELR, depending on a DC bias voltage
- Simulating fuel cells, modules or whole packs
- Active support for energy transition and electrification of the world
- Special functions
- MPPT, EN 50530, test sequences on LV123, LV124 and LV148 standards
Yes to easy handling and operationy
With uniform devices and many interfaces to PCs and PLCs
Easy communication with PCs and PLCs

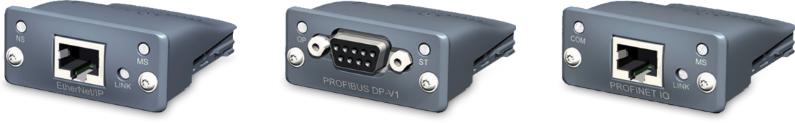

EA-10000 Series instruments work effectively in PC-controlled test systems or PLC-controlled industrial processes. Engineers can easily program the instruments using SCPI or ModBus programming modes. A comprehensive selection of interfaces is also included: PC interfaces with Ethernet, USB and RS-232, PLC interfaces with CanBus, Profibus, ModBus, Profinet and EtherCat, among others.
- In test systems and industrial processes
- EA-10000 series in PC controlled test systems or PLC controlled industrial processes applicable
- Programmable
- Devices easily programmable via SCPI or ModBus programming modes
- Extensive choice of interfaces
- PC interfaces with Ethernet, USB and RS-232, PLC interfaces including CanBus, Profibus, ModBus, Profinet and EtherCat, among others
Yes to safe parallel connection
With up to 64 devices in the EA-Power Racks
Parallel connection for high power systems up to 1.92 MW

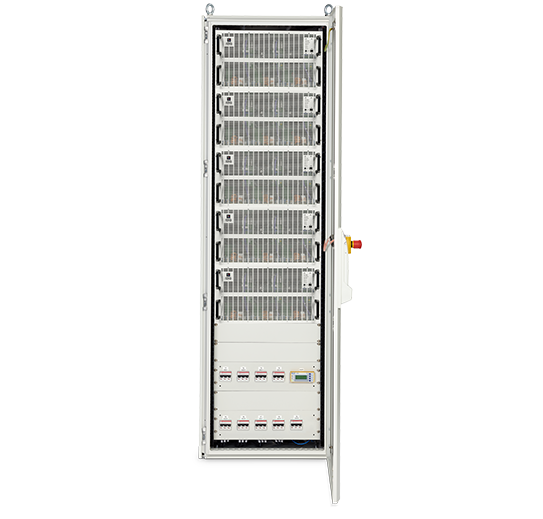

Up to 64 EA-10000 series power supplies and loads can be connected in parallel via the master-auxiliary bus. The system can consist of any combination of units of different power classes within the same EA-XXX family (EA-PSB, EA-PSI, EA-ELR etc.). A galvanically isolated share-bus interface in each device also provides safety by allowing the devices to safely share load requirements so that the entire rack can operate at full dynamic range.
- Control with one device
- Parallel connection of up to 64 power supplies and loads via master-auxiliary bus
- Any combination of devices
- System combination from different power classes within the same EA familys
- Safety
- Safe sharing of load requirements, full dynamics in the EA-Power Rack
